Darksite Installation

Anyware Trust Center can be installed in darksites, without a connection to the public internet.

Requirements

The requirements for installing a Trust Center listed here, are identical to the requirements for running the command to prepare a Trust Center darksite bundle.

There are a few additional pre-requisites, given below:

• DNF software package manager is installed

• Docker CE 25.0.1 is installed

• Internet connection is required

Info

For Darksite installation, the host preparing the bundle must have the following software:

• Docker v25.0.1+

• cURL

• DNF

High-level Overview of Darksite Installation

Darksite installation involves these general steps:

1. Create a temporary machine for preparing Anyware Trust Center for installation.
2. Choose a domain name for connections to the Anyware Trust Center.
3. Prepare Trust Center for installation.
4. Create a Darksite machine to host Anyware Trust Center.
5. Configure DNS Records.
6. Create a gateway, if the machine does not already have a default gateway.
7. Copy downloaded files to the Darksite machine.
8. Run the installation script.

Info

• Ensure that there is no default route before running the commands.
• The FQDN entered as part of running the prepare command must be accessible within a local network.
• Firmware updates require a connection to the internet. Once the installation of Trust Center is completed, update the Trust Center firmware as necessary.

Step I: Create a temporary internet-connected machine

This machine will be used to download files and create an installer. This machine must meet minimum requirements.

Info

The temporary Internet-connected VM should have identical Operating System and specifications as the darksite VM to ensure that the packages are prepared correctly.

Download IP Addresses

If you use an IP-based allowlist, we recommend your IT team add the following IP addresses to your allowlist on the temporary machine:

• 166.117.189.248
• 166.117.55.125

These IP addresses are required by Cloudsmith for its content delivery network, and if they are not allowed, the Trust Center installation script cannot be downloaded from our website.

Step II: Choose a Fully Qualified Domain Name (FQDN)

The Anyware Trust Center requires 5 Fully Qualified Domain Names added to your DNS records. In this step, you're creating the base domain for the Anyware Trust Center, which will be used to construct the other 4 subdomains, which can either be an A record or a CNAME. You'll use this value in multiple locations during setup, so record the value and be ready to copy it.

Step III: Prepare Trust Center for Installation

This procedure is completed from the temporary internet-connected machine:

1. Go to the download website.

2. If you are not already logged in, click Log in to download and authenticate your session.

3. Click Downloads and scripts.

4. Read and accept the End-User License Agreement. Once the agreement has been accepted, the download form is shown:



5. Provide your chosen FQDN—recorded earlier—in the Trust Center Hostname (FQDN) field, and click Get installation script.

   Note: FQDN field is optional

   The FQDN value is required to run the installer, but you do not have to supply it here. If you leave this field blank, you must manually add the actual FQDN to the script command before executing it.

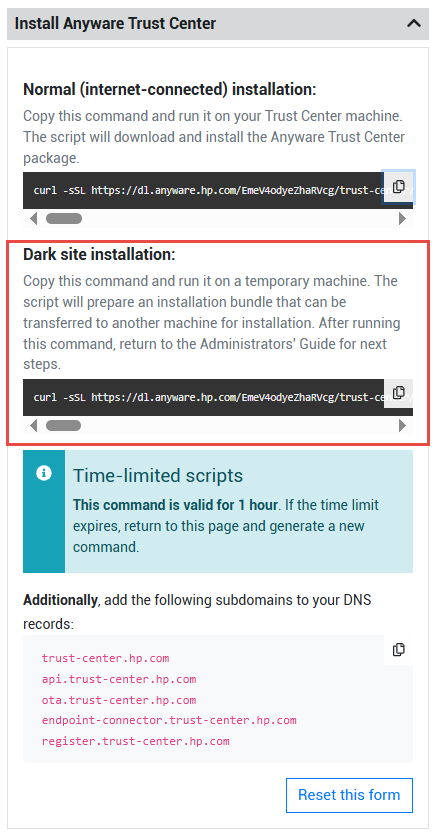

6. Under Install Anyware Trust Center, copy the entire command displayed. There are two parts, and both are required: a curl command that downloads the installation script, and second command that executes the script.



   Important: This script is time-limited

   The generated command is valid for 1 hour. If the token expires before you run it, return to the download page and generate a new command. The time limit applies to running the prepare command, not installing the package. Once you have successfully generated the installation bundle, you can install the package at any time.

7. Paste the command copied earlier and run it to prepare a Trust Center Darksite bundle for installation. The --save-path flag in the command is optional.

Once the operation completes, you should see 2 files in the current directory (or in the path specified by --save-path):

- anyware-trust-center-bundle.tar.gz
- anyware-trust-center-bundle.sha

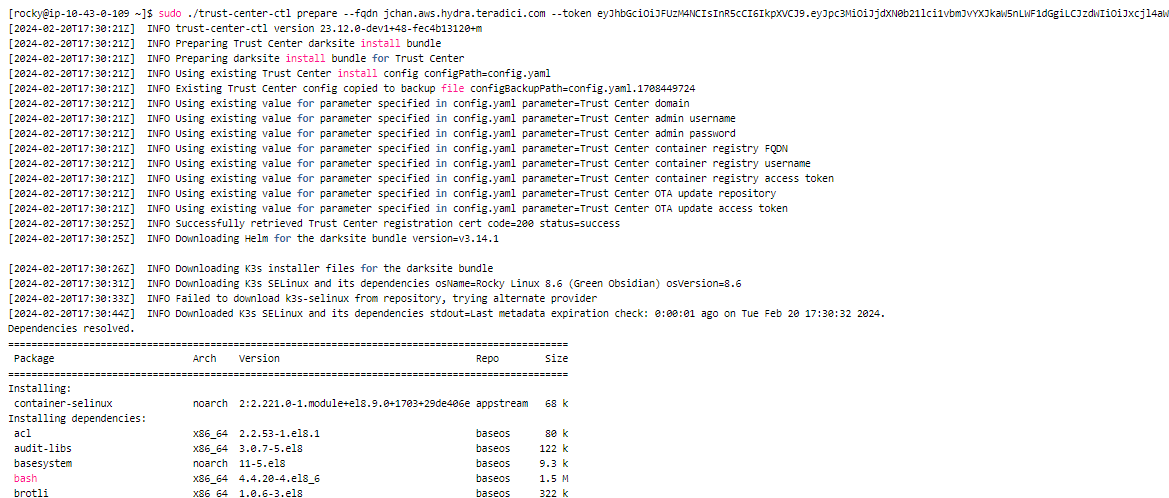

Sample output of TC Prepare Command

Additional Notes for TC Prepare Command

Info

The correct version of k3s-selinux is now included in the Trust Center Darksite bundle.

• Run sestatus to verify that SELinux is enabled on the VM and running. This is a requirement to enable k3s-selinux for K3s server.
• There is no expiry for the Trust Center Darksite bundle that is generated. It can be run anytime.

Step IV: Create the Darksite Machine

The Anyware Trust Center requires a dedicated server with the following specifications (note that the network and software requirements are different from standard installations):

Requirement
Operating System	• RHEL 8, 9 (RHEL 8 support will end in 2025) • Rocky Linux 9 • CentOS Stream 9
CPUs	4 vCPUs
Memory	16GB RAM
Disk	120GB+, including 80GB+ disk space on /var for persistent volumes. On ESXi or similar hypervisors, the Trust Center does not support installation on Sparse (thin) provisioned disks. Please use raw or thick provisioned disks.
Network	A default gateway is required, even without an internet connection. If the machine does not have one, a dummy route is required for installation. See Checking for a Default Gateway for instructions.
Software	DNF

1. Deploy a dedicated server to host the Anyware Trust Center. You must be able to transfer files to this machine.

2. Transport the Trust Center Bundle to this server. This can be done via an encrypted USB device (recommended) or DVD, Blu-ray, or another medium.

Test Environment Specifications

The above minimum requirements were tested with the following specifications and hardware.

Requirement
vCPUs	4
Memory	16GB RAM
Memory per vCPU	4GB
Physical Processor	AMD EPYC 7571
Clock Speed	2.5GHz
CPU Architecture	x86_64

Older or slower servers may experience issues during installation, upgrades, or general use of the Trust Center. For optimal performance, we recommend using a modern CPU or allocating additional vCPU cores.

Step V: Create DNS Records

The Anyware Trust Center requires 5 Fully Qualified Domain Names (FQDN) added to your DNS records. In this step, you're creating the base domain under which all the other records will live.

An example of a base domain is as follows: my-trust-center.example.com A 1.2.3.4

Additionally, 4 other subdomain DNS records must be defined under this base domain name. Those can be either A records or a CNAMEs pointing to the same IP address of the Trust Center, or CNAMEs aliasing to the base Trust Center FQDN.

Example, using A records (all pointing to Trust Center IP 1.2.3.4):

api.my-trust-center.example.com A 1.2.3.4
endpoint-connector.my-trust-center.example.com A 1.2.3.4
ota.my-trust-center.example.com A 1.2.3.4
register.my-trust-center.example.com A 1.2.3.4

Alternate example, using CNAMEs:

api.my-trust-center.example.com CNAME my-trust-center.example.com
endpoint-connector.my-trust-center.example.com CNAME my-trust-center.example.com
ota.my-trust-center.example.com CNAME my-trust-center.example.com
register.my-trust-center.example.com CNAME my-trust-center.example.com

If your organization's policy requires Trusted Zero Clients to be connected to the Trust Center at all times, these records must always be available.

For each of the following items, replace <domain-name> with the domain name you recorded in the previous step.

• <domain-name>

  This is the root domain for your Trust Center. This is what is entered on Trusted Zero Clients if anywaretrustcenter is not configured on your LAN.

• api.<domain-name>

  The api subdomain is used by Endpoint Management Systems to control the Trust Center. Sometimes, the EMS requires the api subdomain to be specified, but often only the is required.

• endpoint-connector.<domain-name>

  The endpoint-connector subdomain is used by Trusted Zero Clients to register and communicate with the Trust Center.

• ota.<domain-name>

  The ota subdomain is used by Clients to retrieve Over-the-Air updates from the Trust Center.

• register.<domain-name>

  The register subdomain is used by Trusted Zero Clients to onboard with the Trust Center.

Info

If you manually enter the Trust Center address, you can either:

• Provide the root domain name like this: register.<domain-name>.
• Provide the root domain name without "register". In this scenario, "register" is added to the address as a prefix.

Important: Supporting automatic Anyware Trust Center discovery

If you plan to support automatic Anyware Trust Center discovery by endpoints, you must also create a CNAME record that redirects anywaretrustcenter to register.<domain-name>.

Example Illustrating the Use of trust-center.example.com

Using trust-center.example.com as the base domain, you would create DNS records for the following:

• trust-center.example.com
• api.trust-center.example.com
• endpoint-connector.trust-center.example.com
• ota.trust-center.example.com
• register.trust-center.example.com

This example shows a different DNS configuration using Windows DNS Manager:

Step VI: Verify or create a default gateway on the Darksite machine

The Anyware Trust Center requires a default gateway even when an internet connection is not present. If you are not sure whether your machine already has one, see Checking For a Default Gateway. below, for steps to check and to create one if necessary.

If the machine already has a default gateway, this step is not required.

Step VII: Copy downloaded files to the Darksite machine

The following files are created by the preparation script. Transfer all three files to the isolated machine that will host the Anyware Trust Center using any acceptable method, such as USB drive or SSH:

• trust-center-ctl
• anyware-trust-center-bundle.tar.gz
• anyware-trust-center-bundle.sha

Place these files in a clearly identified location on the new machine; this will become your installation directory, and subsequent commands will be run there.

Once these files are transferred, the temporary machine is no longer needed.

Step VIII: Install Trust Center on the Darksite Machine

1. To verify the integrity of the Trust Center Darksite bundle manually, run the following command in your terminal in the same directory as the copied files:

   sha256sum --check anyware-trust-center-bundle.sha


   The output should appear as follows: anyware-trust-center-bundle.tar: OK

   This confirms that the Trust Center Darksite bundle contents match what it was when originally residing in the repository it was downloaded from. Since the installer automatically verifies the integrity of the Trust Center Darksite bundle during installation, this step is optional.

2. Open a terminal window and navigate to your installation directory (the location you used when you copied the installation files). Run the following command:

   sudo ./trust-center-ctl install darksite --admin-password <desired Trust Center admin password>


   The command installs a new Darksite Trust Center.

3. To validate the installation after it completes, run the following command:

   sudo ./trust-center-ctl diagnose


   All services should report healthy.

If the diagnostic process finds that the installation completed successfully, you will see log output as shown below, where all service information is indicated as "Health=Healthy". You will not see any "error" in the log.

If the diagnostic process finds that the installation did not complete successfully, you will see log output as shown below, where one or more services indicate an error with "ERROR ...... Health=Unhealthy".

The Trust Center may be unhealthy for the following reasons:

• Some databases used in the Trust Center are not compatible with Sparse (thin) Virtual Disks. This incompatibility can lead to installation failures without clear error messages. If you encounter an installation failure and are using Sparse Disk Images, switch to Thick Disk Provisioning.

• The firewall may be blocking k3s functionality. If this is the case, disable any firewall rules that could be obstructing k3s local network communications.

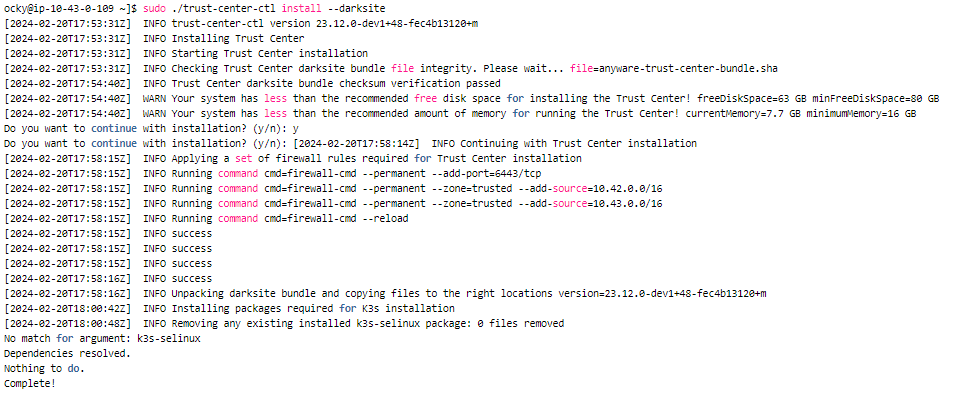

Sample output of Trust Center Darksite install:

After Installing

After installation completes, you can set up your management tool to interact and manage Trusted Zero Clients via the Anyware Trust Center.

Refer to the EMS documentation provided by your OEM, for complete details.

Note: The administrator password is automatically generated

The administrator password is automatically generated by the Anyware Trust Center installer, and has the ability to create service account keys. The generated password is placed in the config.yaml file in your installation directory.

<installation_folder>/config.yaml:

global:
images:
    registry: "docker.cloudsmith.io/teradici/trust-center"
    username: "teradici/trust-center"
    password: <repository password>
tc:
    domain: <your domain>
    password: <this is the auto-generated password>
    endpointUpdate:
      accessKey: <repository password>
      repository: "teradici/trusted-zero-client"

To upgrade Trusted Zero Clients, refer to Darksite Firmware Updates.

Checking for a Default Gateway

The Anyware Trust Center requires a default gateway to be set on the Darksite machine, even without an internet connection.

To check whether a default gateway exists:

1. Open a console window, and run:

   ip route | grep default


   If the response looks similar to this example, then a default route already exists, and you can continue with installation:

   default via 10.X.X.X dev ens5 proto dhcp src 10.X.X.X metric 100


2. If the response indicates that no default gateway is present, run the following commands to create a dummy route:

   ip link add dummy0 type dummy
   ip link set dummy0 up
   ip addr add 203.0.113.254/31 dev dummy0
   ip route add default via 203.0.113.255 dev dummy0 metric 1000


Info

Since a Darksite Trust Center cannot access external internet, OTA updates cannot be retrieved automatically. For information on updating your Trusted Zero Client, see Darksite Firwmare Updates.
